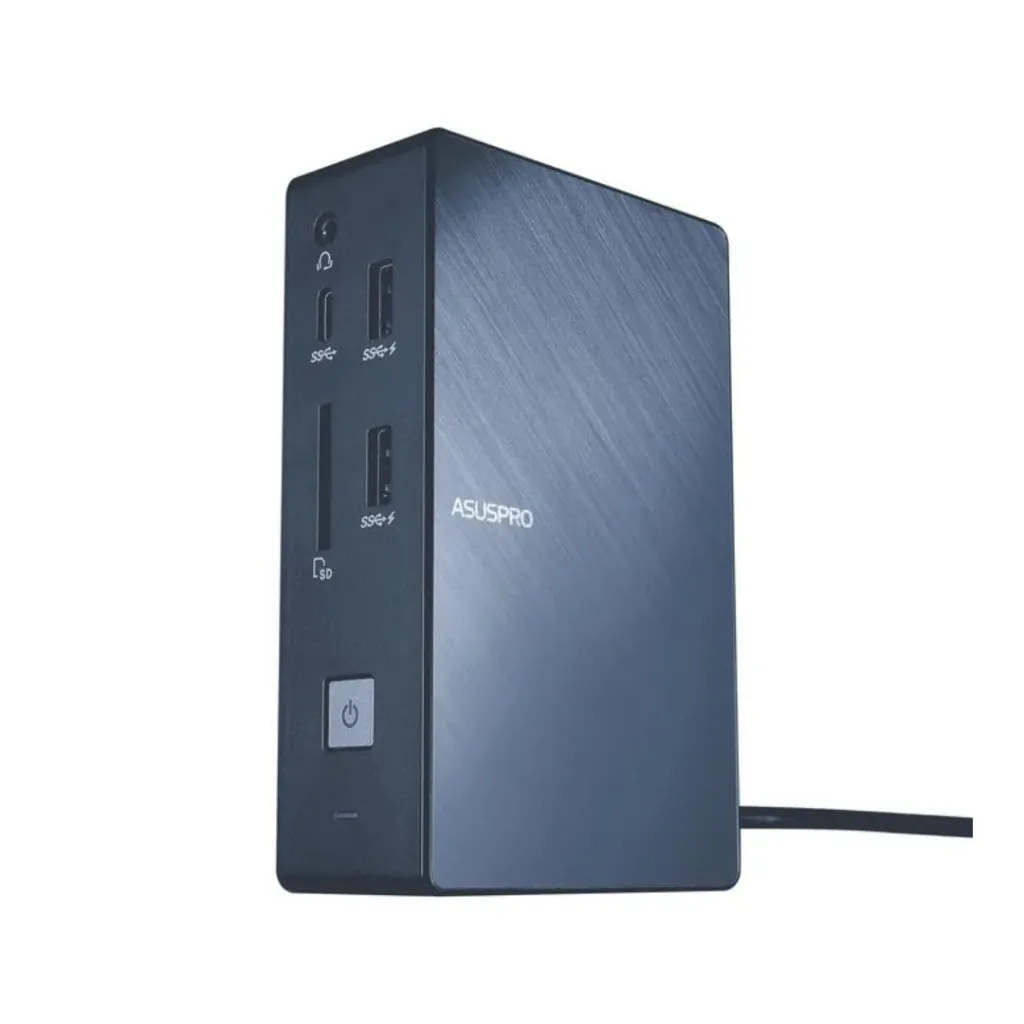

Asus Simpro Dock

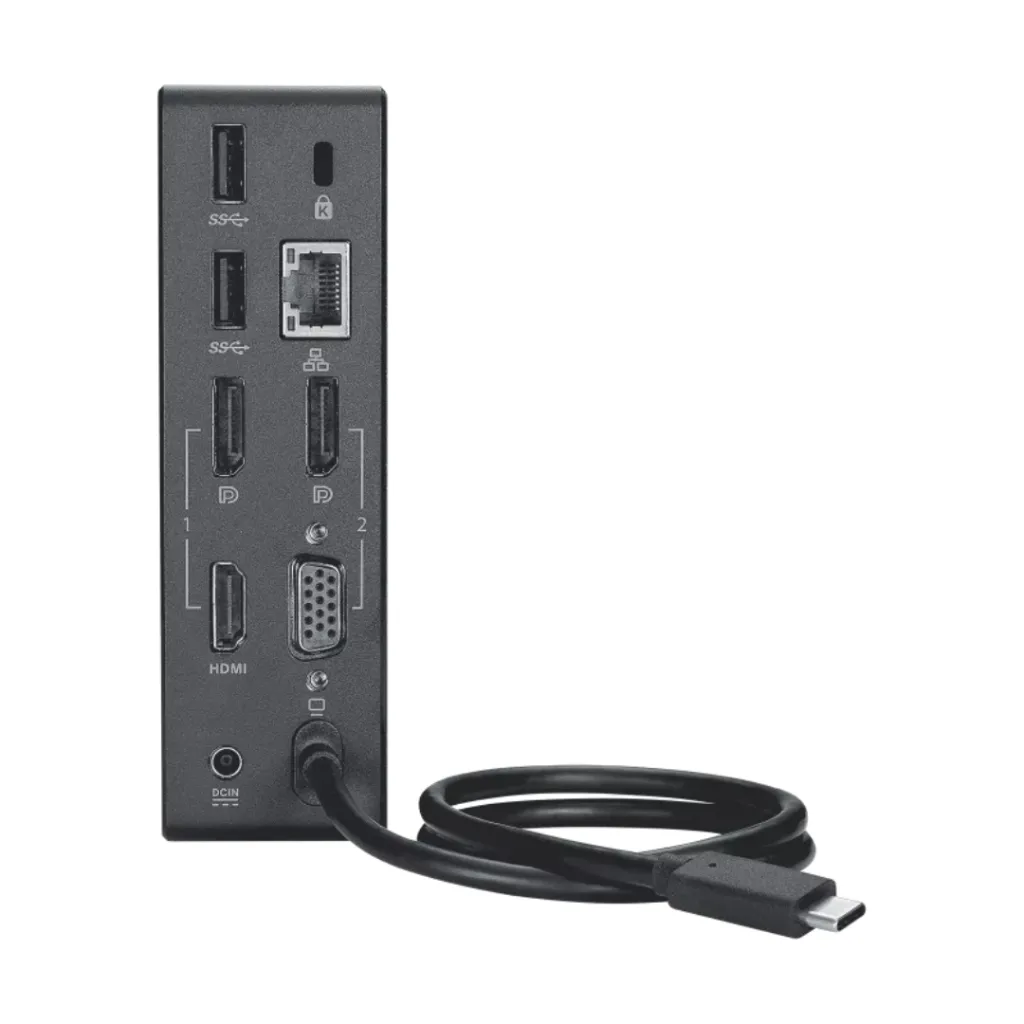

Connectivity

• USB Ports: 4 x USB 3.0 Type-A downstream, 1 x USB Type-C upstream, 1 x USB Type-C downstream, plus 2 x USB 3.0 charging ports for fast device charging
• Video Outputs: 1 x HDMI (up to 1920×1200), 1 x VGA (up to 1920×1080), 2 x DisplayPort 1.2, supporting multiple monitors and high-resolution displays
• Audio: 1 x MIC in (combo with audio), 1 x Audio out port for headphones or speakers
• Network: 1 x Gigabit Ethernet (10/100/1000 Mbps) for wired network connectivity .
• Card Reader: 3-in-1 memory card reader for SD, SDHC, and SDXC cards
• Security: Kensington lock slot for physical security

Power and Performance

• Power Adapter: 120W ASUS adapter, supporting power delivery to connected laptops via USB-C/Thunderbolt 3
• Thunderbolt 3 Support: Provides up to 40 Gbps data transfer, fast charging, and video output for compatible devices
• USB 3.2 Gen 2 Type-A: Supports fast charging for smartphones and tablets

Physical Specifications

• Dimensions: 82 mm × 128 mm × 38 mm (SimPro Dock), 40.6 mm × 99 mm × 161.5 mm (SimPro Dock 2),
• Weight: 0.375 kg (SimPro Dock), 650 g (SimPro Dock 2),
• Color Options: Black and Blue (SimPro Dock 2),

Compatibility

• Designed for ASUS ExpertBook and ASUSPRO series laptops, including models B9450, P2451, B9440, and P5440
• Full functionality requires laptops supporting Intel Thunderbolt technology for power delivery and multi-display support

Additional Features

• Supports up to four monitors, including resolutions up to 8K on compatible displays
• Integrated smart card reader for business and IT management applications
• Wake-on-LAN, MAC address pass-through, and remote port disablement for enterprise security and management
  The ASUS SimPro Dock provides a comprehensive docking solution for professionals needing multiple peripheral connections, high-resolution display support, and secure, efficient power delivery in a compact form factor.
